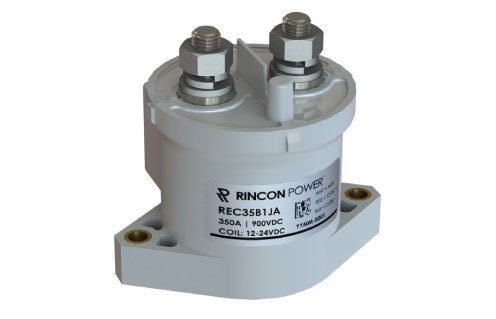

RINCON POWER REC35P1JX DC Contactor
400A, 900VCD, Bottom Mount, integrated PWM (RINCON POWER REC35P1JX DC Contactor)
| Manufacturer | |
|---|---|
| Product Category | |
| Model | |
| Current Rating | |
| Contact Voltage (Operating Max) | |
| Coil Voltage | |
| Stock |
- 12 months manufacturer warranty
- FREE SHIPPING FOR ORDERS ABOVE $999
Â
Â
Technical Information
FEATURES
SPST Normally Open High Voltage Contactor
- Hermetic seal with gas fill
- Optional auxiliary contacts – for main position feedback
- Integrated coil economizer to reduce coil holding power
- Meets RoHS 2011/65/EU
- CE Certified
- UL recognized (File E536110)
TECHNICAL SPECIFICATIONS
| Product Type | DC Contactor | ||
| Series | REC35 | ||
| Contact Form | SPST-NO (DM) (1 Form X) | ||
| Mounting Type | Bottom Mount | ||
| Coil Voltage | 9 ~ 36VDC | ||
| Contact Rating (Current) | 400A | ||
| Switching Voltage | 900VDC | ||
| Operating Temperature | -40°C ~ 85°C | ||
| Features | Sealed – Hermetically | ||
| Termination Style | integrated PWM | ||
| Must Operate Voltage | 9 VDC | ||
| Must Release Voltage | 6 VDC | ||
| Mechanical life | 500,000 | ||
| Operate Time | 25 ms | ||
| Release Time | 12 ms | ||
| Protection Type | Exceeds IP69, (Hermetically sealed) | ||
Export and Environmental Classification
| Manufacturer | RINCON POWER |
| Classification | DC Contactor |
| RoHS Compliant | Compliant  |
| CE Certified | Approved |
| CCC Certified | Approved |
| UL File | Available |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Datasheet |  Click to Download |
