StarPower MD15FSR120L2SF SIC MOSFET

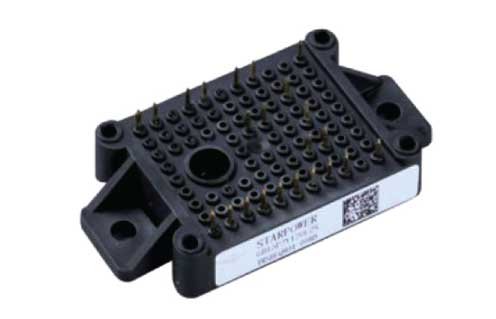

1200V/15A 6 in one-package, Package: L2.1, SiC MOSFET (StarPower MD15FSR120L2SF SIC MOSFET)
| Manufacturer | StarPower Europe |
|---|---|
| Category | SIC MOSFET |
| Model / Series | MD15FSR120L2SF |
| Current (A) | 15A |
| Voltage (V) | 1200V |
| Stock | Limited |
- 12 months manufacturer warranty
- FREE SHIPPING FOR ORDERS ABOVE $999
Â
Â
Technical Information
General Description
StarPower MD15FSR120L2SF SIC MOSFET Power Module provides very low RDS(on) as well as an optimized intrinsic diode.
It’s designed for applications such as SMPS and solar power.
Features
- SiC power MOSFET
- Low RDS(on)
- Optimized intrinsic reverse diode
- Avalanche ruggedness
- Low inductance case
- Substrate for low thermal resistance
- Isolated heatsink using DBC technology
Typical Applications
- Uninterruptible power supply
- Solar Power
- Switching mode power supply

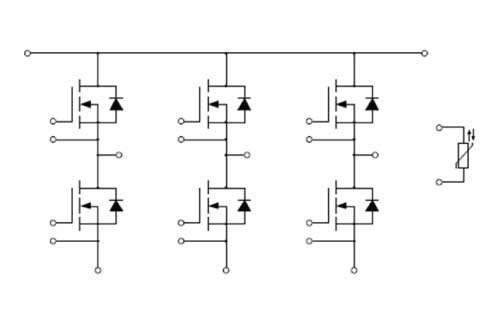

Circuit Schematic
SIC MOSFET 3 Phase Bridge
