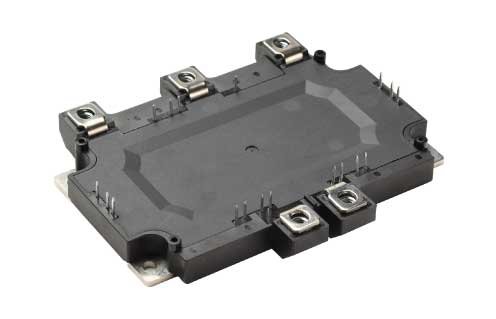

StarPower GD400FFX65P3S IGBT Module
650V/400A 6 in one-package, Package: P3.0, Trench FS IGBT, Low Loss (GD400FFX65P3S IGBT Module)
| Manufacturer | StarPower Europe |
|---|---|
| Category | AUTOMOTIVE IGBT MODULES |
| Model / Series | GD400FFX65P3S |
| Current (A) | 400A |
| Voltage (V) | 650V |
| Stock | Limited |
- 12 months manufacturer warranty
- FREE SHIPPING FOR ORDERS ABOVE $999
Â
Â
Technical Information
General Description
StarPower GD400FFX65P3S IGBT Module provides ultra-low conduction loss as well as short circuit ruggedness.
They are designed for applications such as hybrid and electric vehicles.
Features
- Low VCE(sat)Â Trench IGBT technology
- 6μs short circuit capability
- VCE(sat)Â with positive temperature coefficient
- Maximum junction temperature 175ºC
- Low inductance case
- Fast & soft reverse recovery anti-parallel FWD
- Isolated copper baseplate using DBC technology
Typical Applications
- Automotive application
- Hybrid and electric vehicle
- Inverter for motor drive
Circuit Schematic
3 Phase Bridge with NTC
